Amp
Power your passive speakers, create your dream smart home, and enjoy endless possibilities for multiroom listening. Bring the Sonos experience to your floor-standing, architectural, outdoor, or bookshelf speakers, and connect your TV or turntable. Stream music, radio, audiobooks, and more from all your favorite services, and enjoy easy control with the Sonos app, Apple AirPlay 2, a universal remote or keypad, and your voice with a compatible device. Add Sonos speakers around your home for a more immersive experience. Everything works together over WiFi.
MPN: AMPG1US1BLK
How we specify in Katy
Katy homes are mostly two story with open living areas and tall great room walls. That means tall studs to find, in-wall cable paths that clear the second floor, and audio sized for a large open room. We check wall construction and stud location before quoting a mount. For the Amp specifically, we confirm the fit against your room in Katy, TX before quoting the install.
Service area: Katy, Fulshear, Cinco Ranch, Cross Creek Ranch, Grand Lakes, Firethorne, Brookshire, Richmond, Rosenberg.
Specifications
Audio
| Power | 125 watts per channel at 8 ohms Learn more |
|---|---|
| Output | Stereo or dual mono sound |
| EQ | Use the Sonos app to adjust bass, treble, and loudness to optimize sound performance. |
| Trueplay | This software measures the acoustics of the room then fine-tunes your speakers. Supported Sonos Architectural by Sonance speakers and iOS device required. Learn more |
| Home Theater Audio Formats | Stereo PCM, Dolby Digital*, DTS Digital Surround* (*This is not an indication of a licensed decoder.) The Sonos app's Now Playing screen will display what type of audio is being decoded. Learn more |
Details and Dimensions
| Dimensions | Height: 2.52 in (64 mm) Width: 8.54 in (217 mm) Depth: 8.54 in (217 mm) |
|---|---|
| Weight | 4.63 lbs (2.1 kg) |
| Colors | Black |
| Finish | Matte |
| Controls | Use the capacitive touch controls on the product to play, pause, skip, replay, adjust the volume, and more. Learn more |
| LED | Light on the product indicates connection, mute status, and errors. Learn more |
Power and Connectivity
| WiFi | Connect to WiFi with any 2.4 GHz 802.11/b/g/n broadcast-capable router. For 5 GHz routers, you can either enable 2.4 GHz 802.11b/g/n in router settings or hardwire a Sonos product. Learn more |
|---|---|

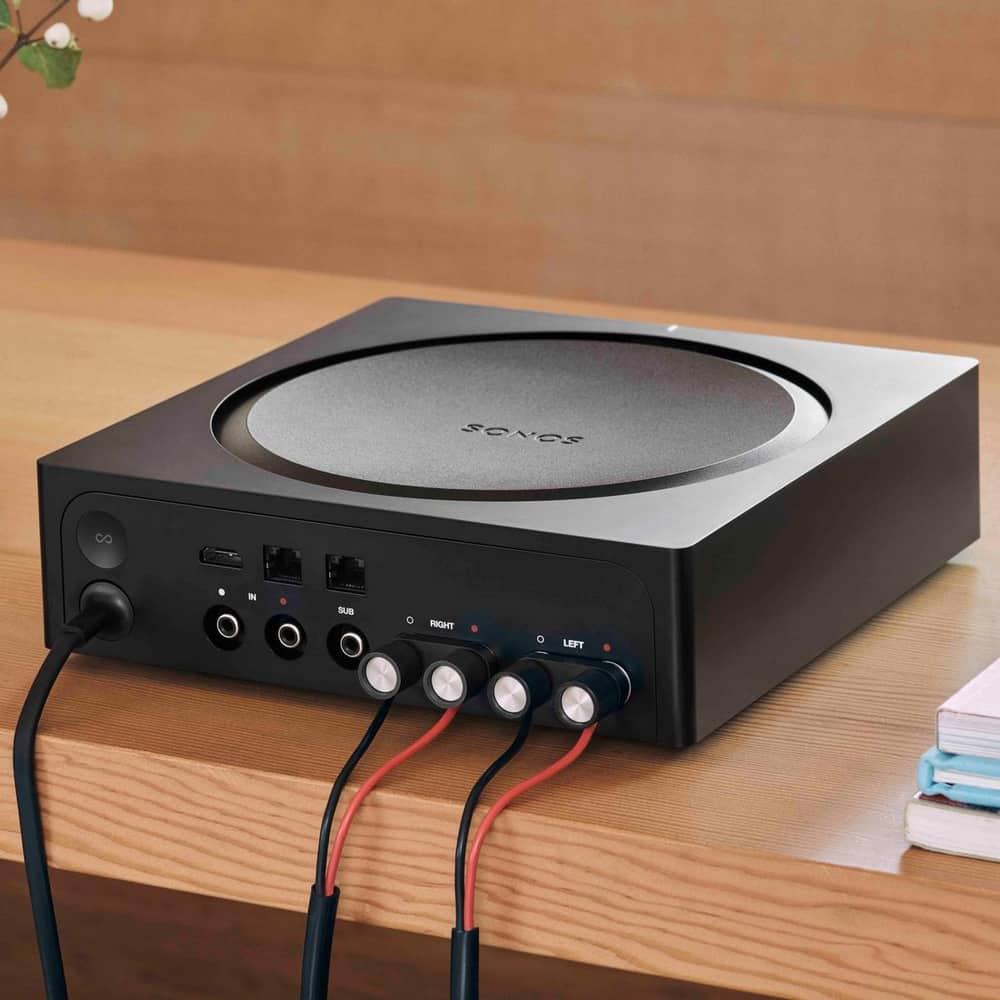

| Speaker Output Connections | Custom-designed banana plugs (2) that can be swapped for standard diameter banana plugs. |

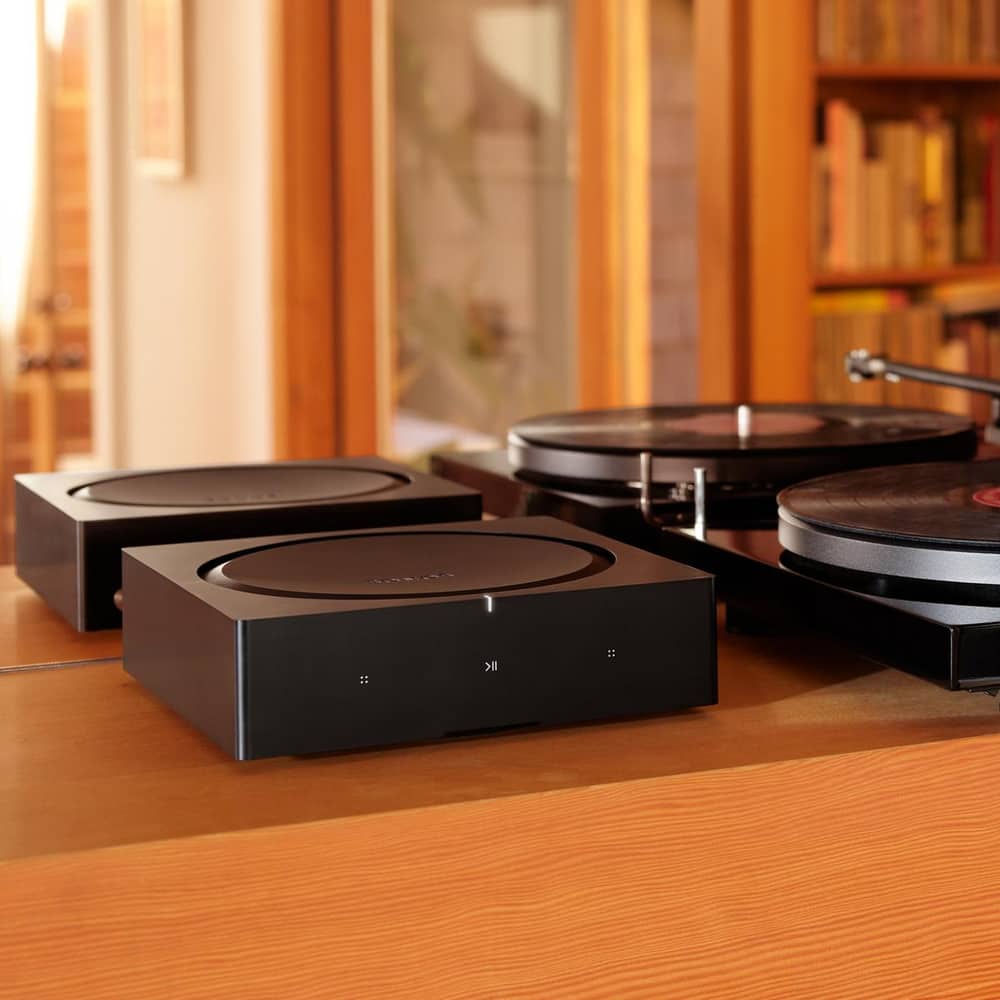

| Line-in | Connect an audio device using an RCA cable. |
| Subwoofer Output | Auto-detecting RCA type, user-adjustable 50-110 Hz crossover |
| HDMI ARC | Connect to your TV's HDMI eARC/ARC port with a HDMI cable. If your TV has an optical output only, use the Sonos Optical Audio Adapter . 2 |
| Ethernet | Dual 10/100 port for hardwiring to your router |
| Voltage | 100-240V 50/60Hz internal power supply |
| CPU | Quad Core 1.3 GHz A7 |
| Apple AirPlay 2 | Works with AirPlay 2 on Apple devices iOS 11.4 and higher Learn more |
Box Contents
| Sonos Amp | Length: 6 ft (2 m) Learn more |
|---|---|
| Sonos Banana Plugs | Pair (2) Learn more |
| Documentation | Set Up Guide and legal/warranty information |
Requirements
| Speakers | Passive or wired required for audio output |
|---|---|
| WiFi | Internet connection |
| Power Source | Nearby electrical outlet |
| Sonos app | The latest generation of the Sonos app running on a compatible device Learn more |
Features
- 125 watts per channel
- Line in
- HDMI® ARC
- Apple AirPlay 2
- Touch controls
- WiFi
Documents
Related models
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Katy, TX, then quote the install.
