MartinLoganspeakerssoundbars
Motion SLM XL
Ultra-Slim On-Wall Speaker
Request a quoteTalk to the team that installs it in Katy, TX. System design, screen matching and calibration included in the quote.
How we specify in Katy
Katy homes are mostly two story with open living areas and tall great room walls. That means tall studs to find, in-wall cable paths that clear the second floor, and audio sized for a large open room. We check wall construction and stud location before quoting a mount. For the Motion SLM XL specifically, we confirm the fit against your room in Katy, TX before quoting the install.
Service area: Katy, Fulshear, Cinco Ranch, Cross Creek Ranch, Grand Lakes, Firethorne, Brookshire, Richmond, Rosenberg.
Specifications
Specifications
| Frequency Response | 100-25,000 Hz ±3dB |
|---|---|
| Recommended Amplifier Power | 20-140 watts per channel |
| Horizontal Dispersion | 80° |
| Vertical Dispersion | 80° |
| Sensitivity | 94 dB/2.83 volts/meter |
| Impedance | 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 3,100 Hz |

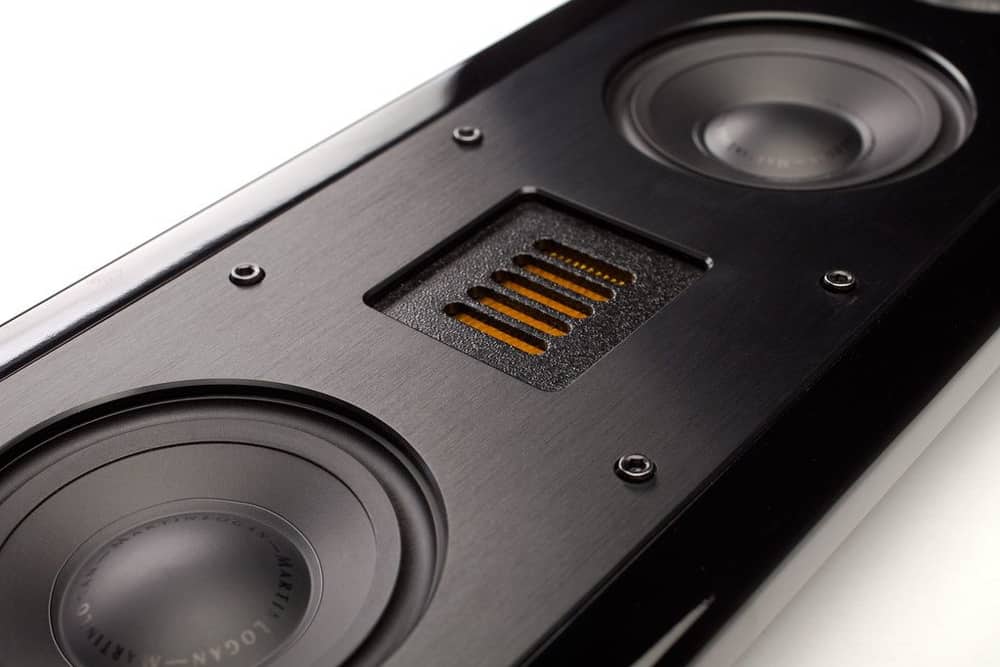

| High Frequency Transducer | 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
| Low Frequency Transducer | Two 4" (10.2cm) paper cone. Four 4" (10.2cm) paper cone passive radiators. |
| Components | Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |
| Inputs | Low-profile push style |
| Weight | 9 lbs. (4.1 kg) |
| Dimensions | 34.1" x 6.4" x 1.89 "; (86.7cm x 16.2cm x 4.8cm) |
Features
- Ultra-Slim Folded Motion Speakers
- Inspired Sound
- The Audible Truth About Thin TVs
- Slender Profile & Stunning Performance
- On-Wall or On-Shelf Versatility
- The Perfect LCR System
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Katy, TX, then quote the install.
