MartinLoganspeakers

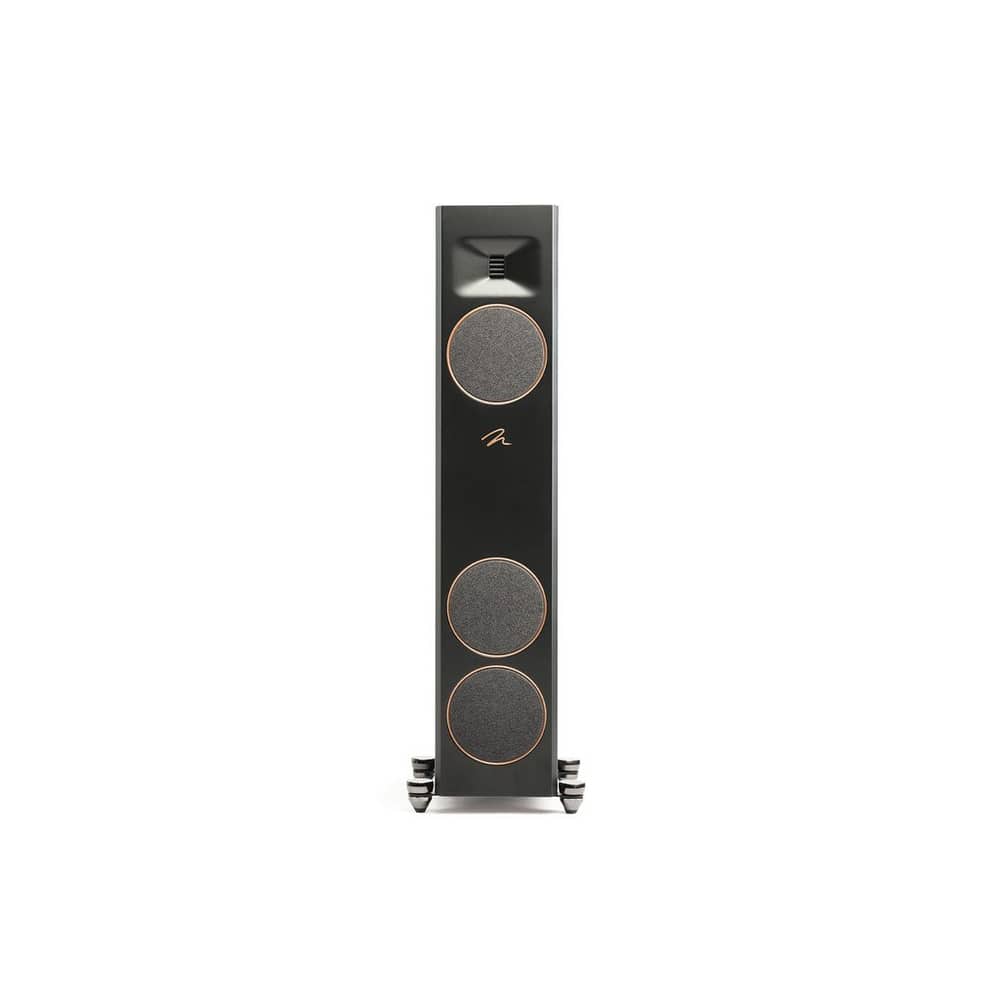

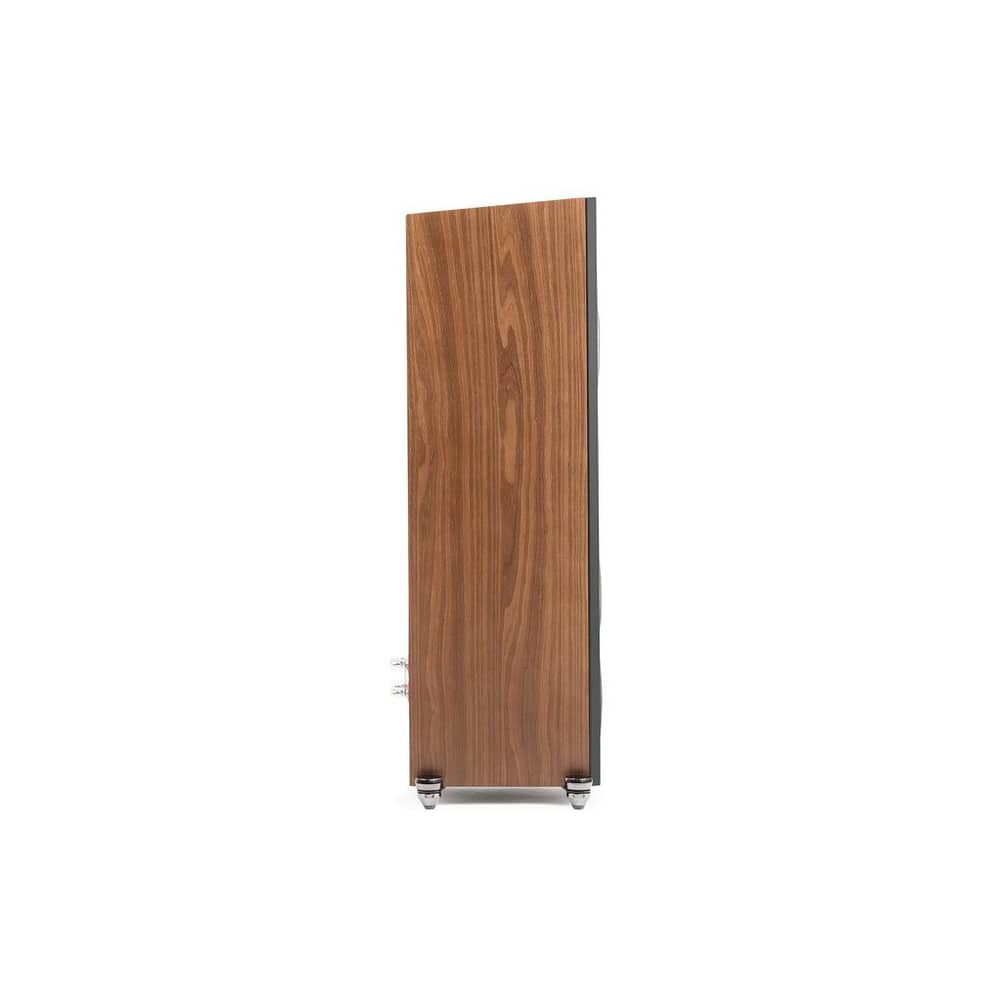

Motion F10
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
Request a quoteTalk to the team that installs it in Katy, TX. System design, screen matching and calibration included in the quote.
How we specify in Katy
Katy homes are mostly two story with open living areas and tall great room walls. That means tall studs to find, in-wall cable paths that clear the second floor, and audio sized for a large open room. We check wall construction and stud location before quoting a mount. For the Motion F10 specifically, we confirm the fit against your room in Katy, TX before quoting the install.
Service area: Katy, Fulshear, Cinco Ranch, Cross Creek Ranch, Grand Lakes, Firethorne, Brookshire, Richmond, Rosenberg.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 38-1/4" x 11-1/4" x 13-1/4"; 97.1cm x 28.6cm x 7.6cm |
|---|---|
| Frequency Response | 38 Hz - 25 kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 90° |
| Recommended Amplifier Power | 20 - 250 watts |
| Sensitivity | 92 dB |
| Impedance | 4 ohms |
| Crossover Frequency | 280 Hz, 3,000 Hz (3-way) |
| High Frequency Driver | 1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm |
| Mid-Frequency Drivers | 5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non- resonant sealed chamber format. Unibody cone construction. |
| Low Frequency Driver | 2x 5.5" (14cm) aluminum cones with cast polymer baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Bottom Ported |
| Binding Post Inputs | Custom bi-amp/bi-wire capable 5-way binding posts |
| Weight | 50.5lbs / 22.9kg |

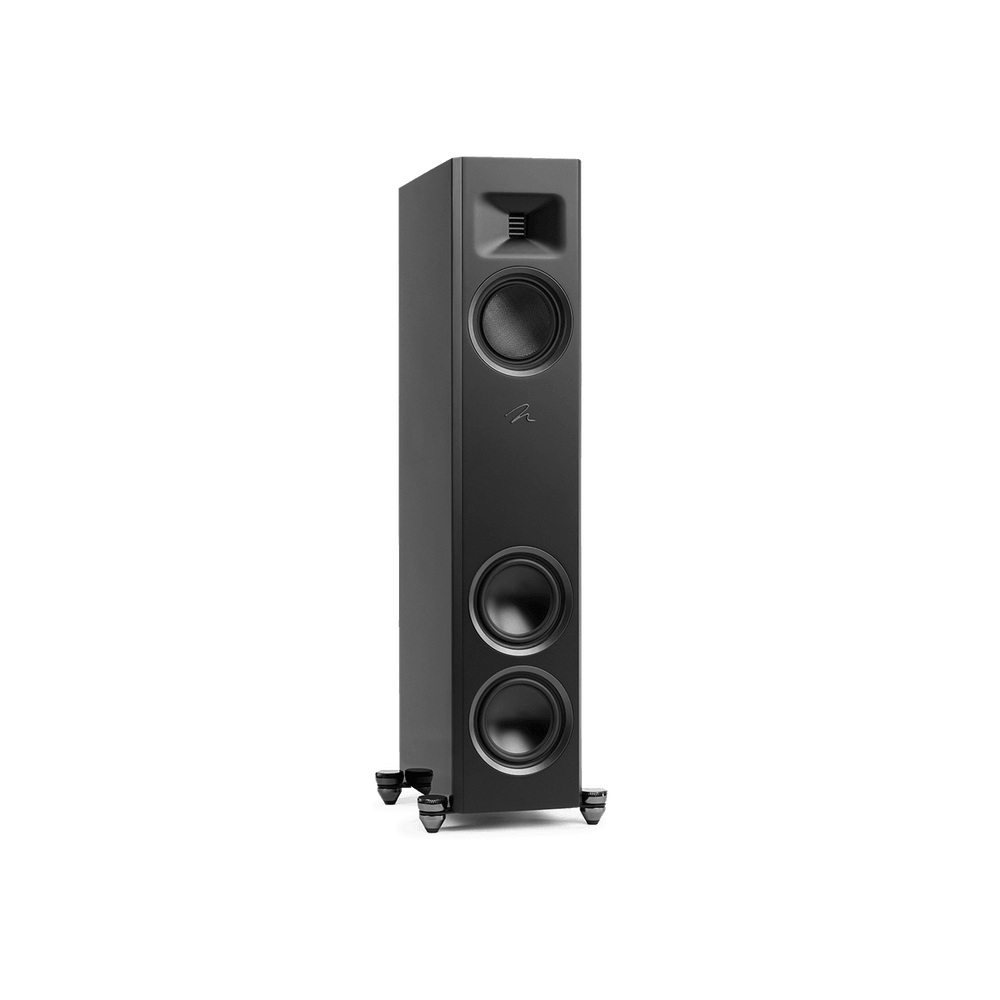

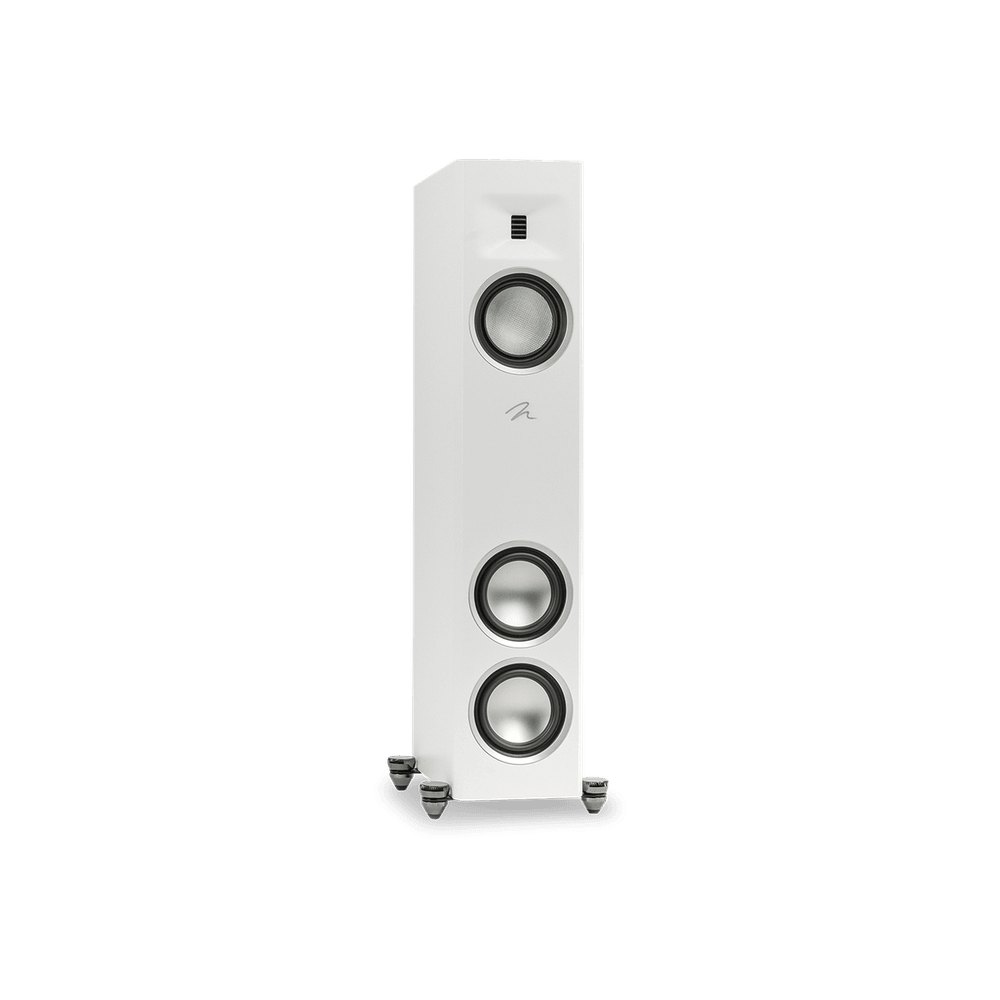

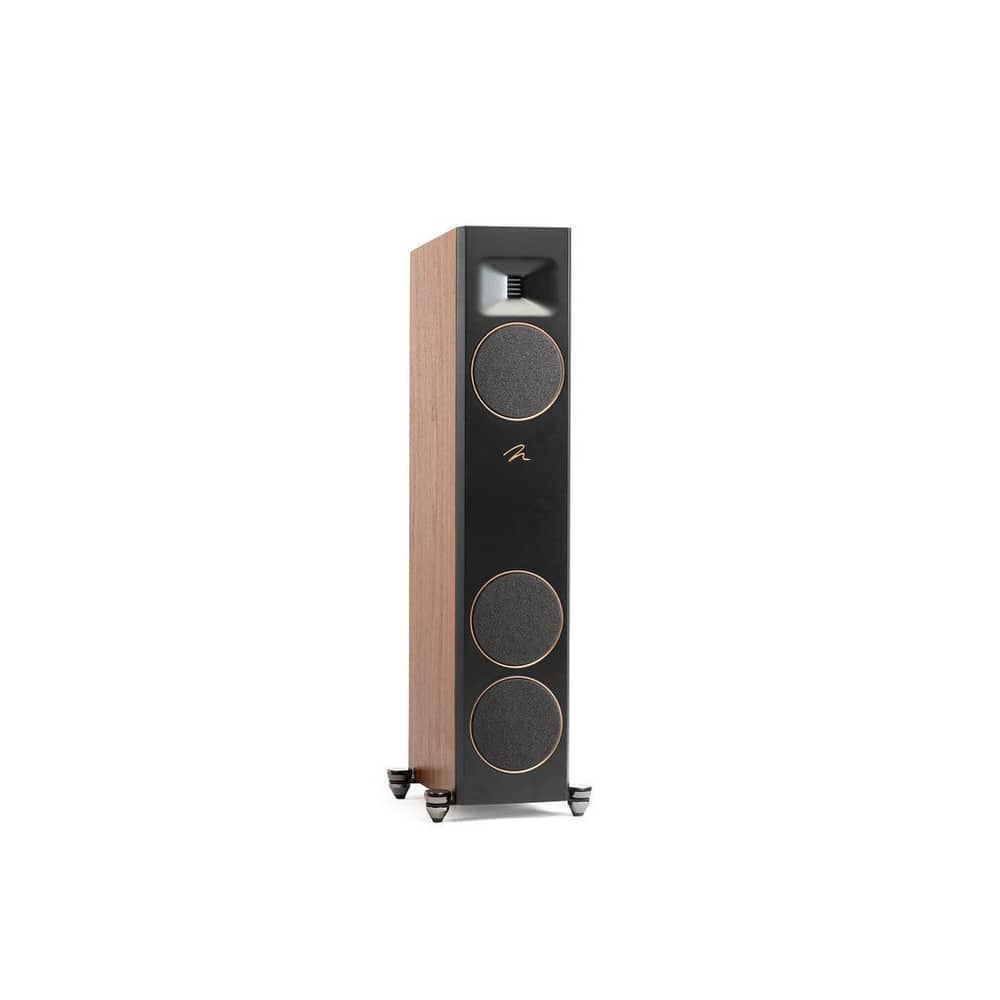

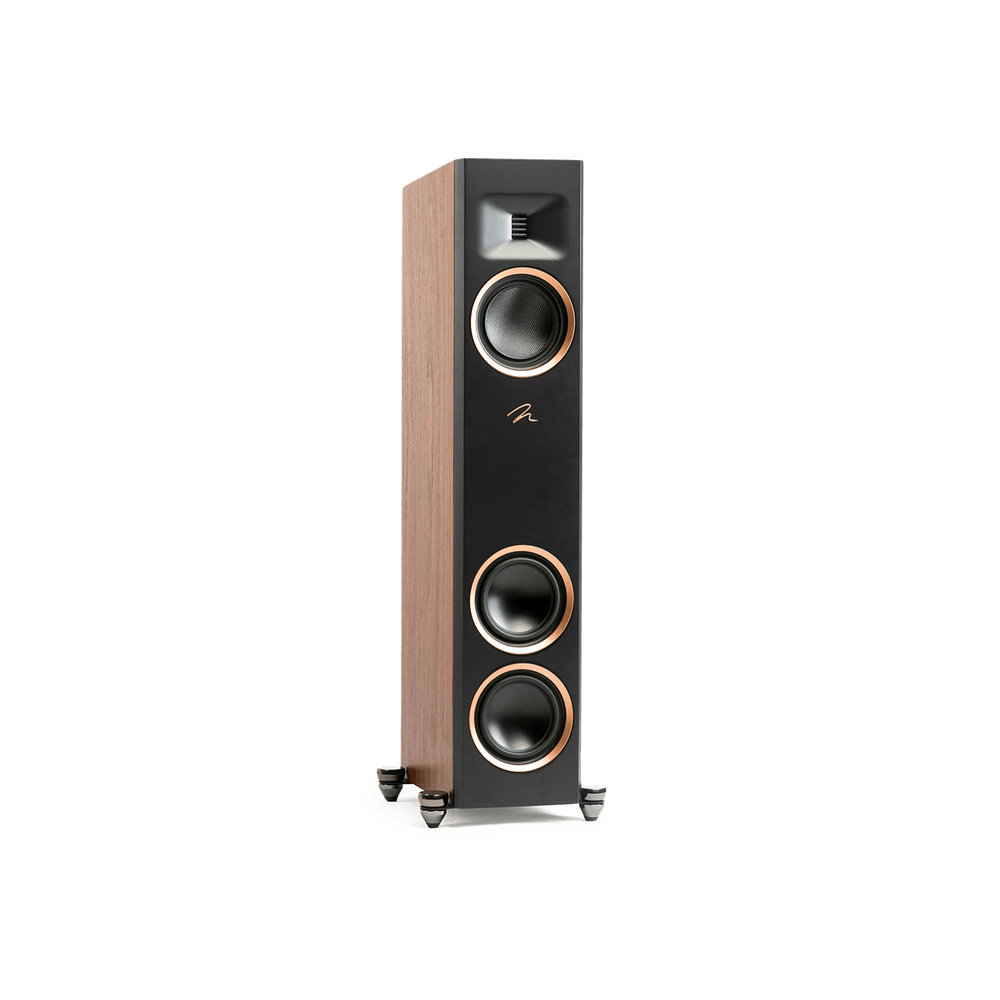

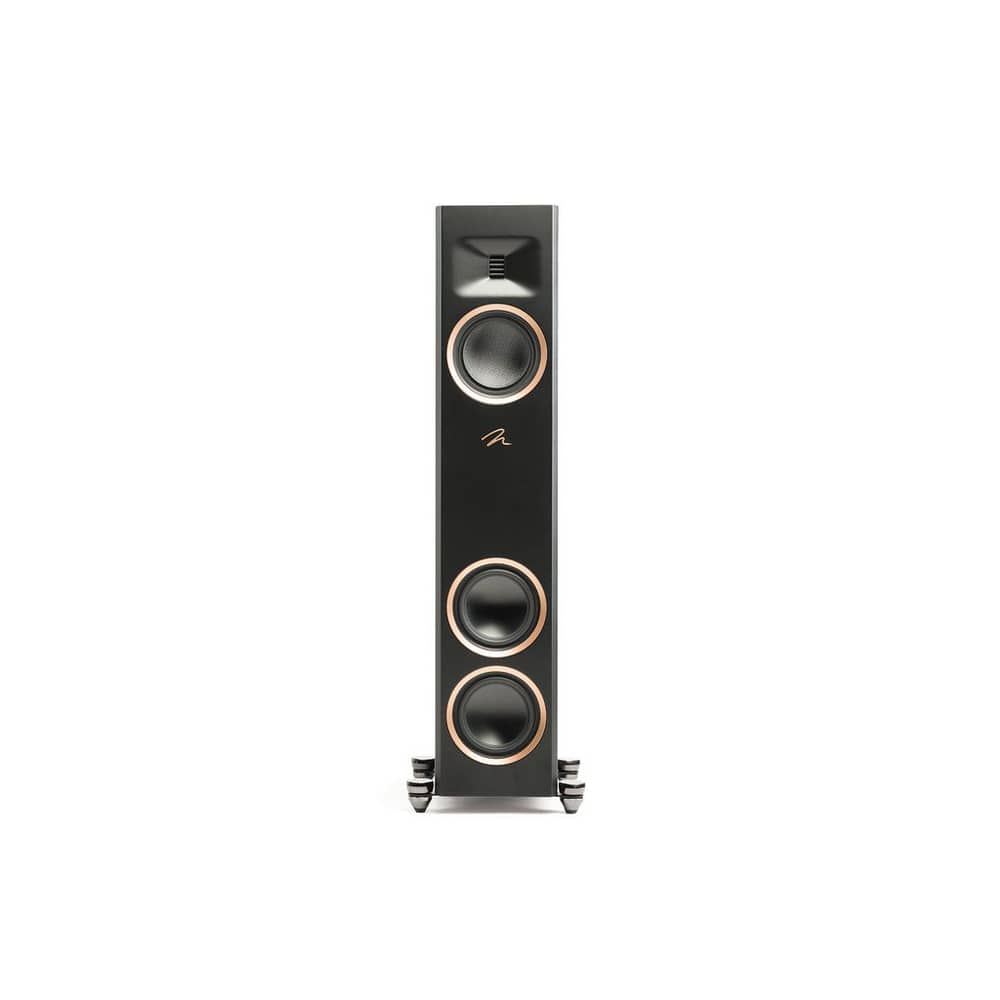

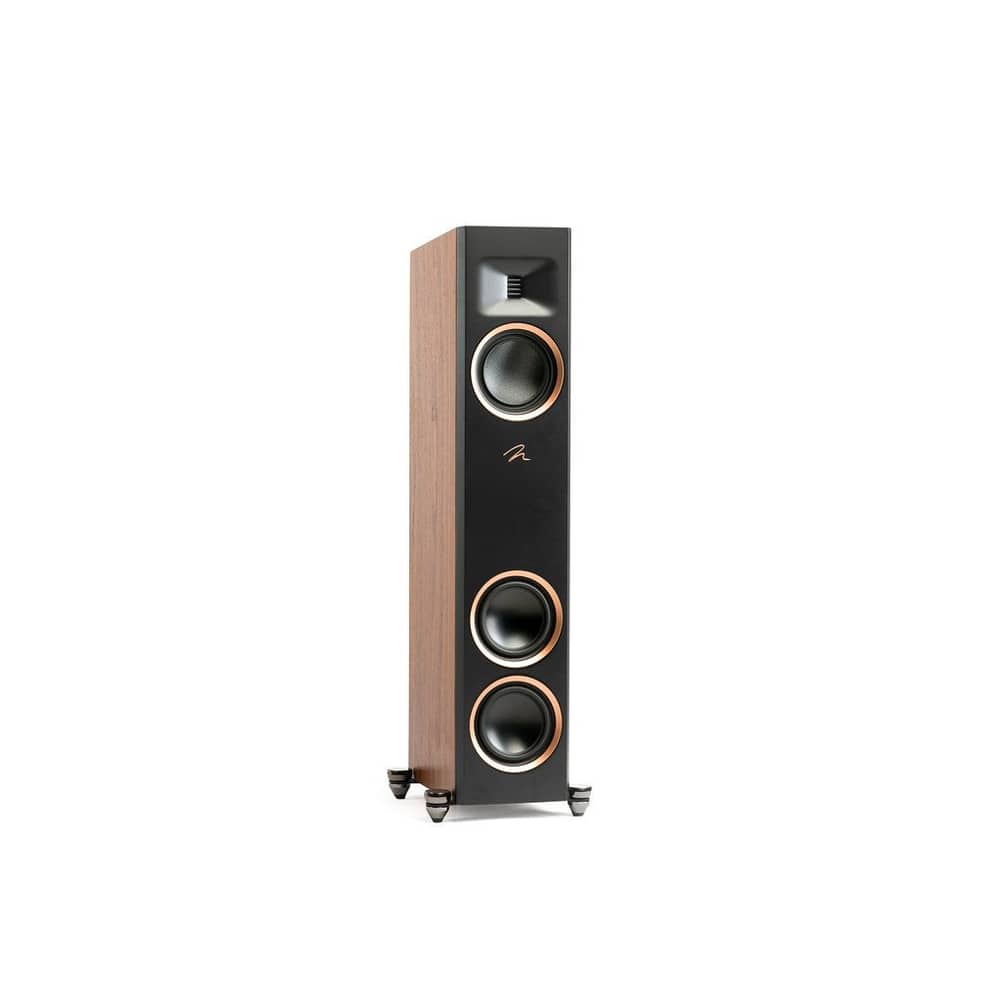

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound

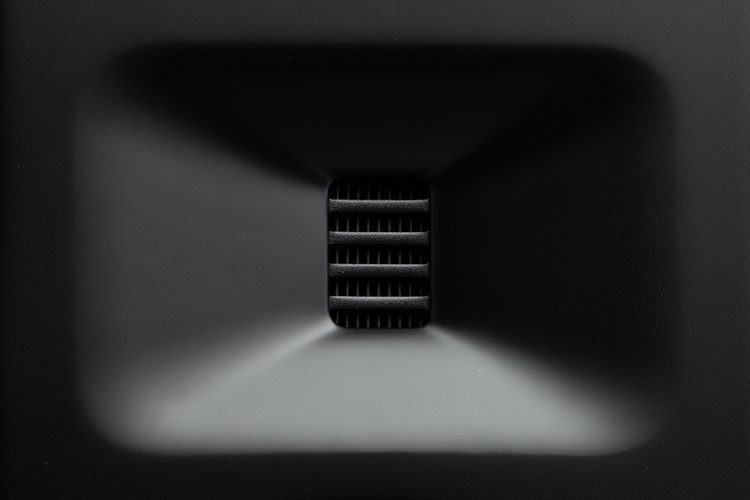

- Gen2 Obsidian Folded Motion Tweeter
- Folded Motion Waveguide

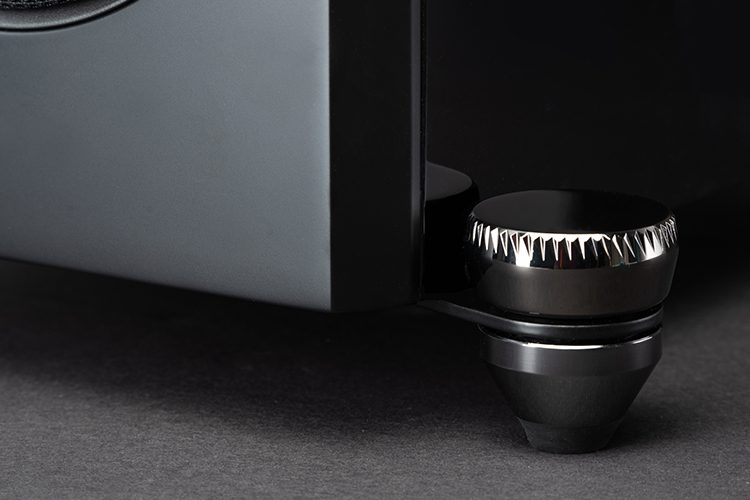

- F.A.S.T. Outrigger Feet
- Woven-Fiberglass Midrange
- Aluminum Bass Drivers
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Katy, TX, then quote the install.
