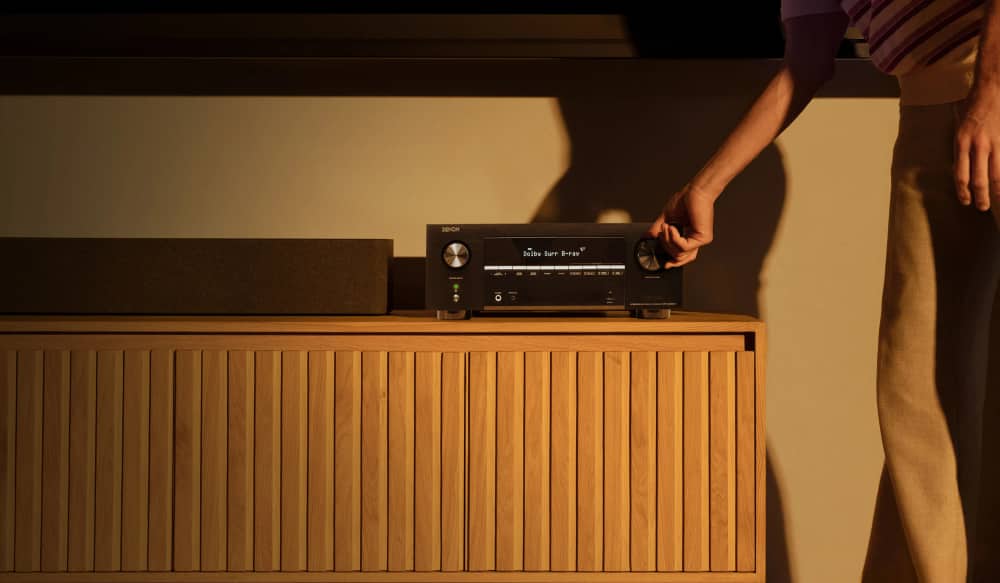

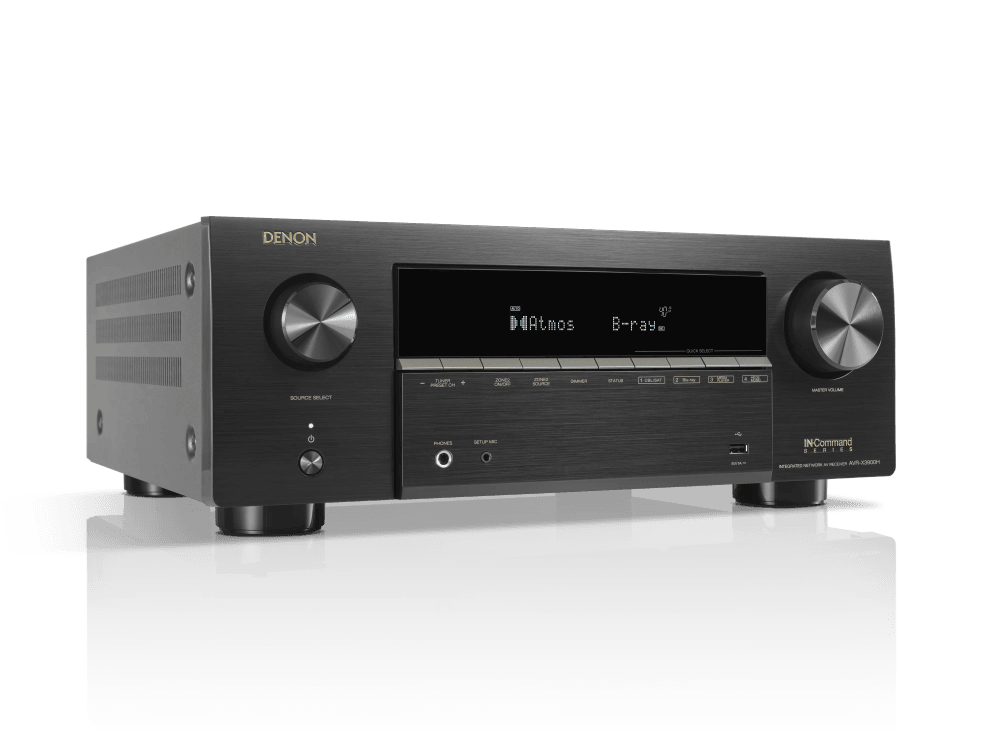

AVR-X3900H
The Denon AVR-X3900H delivers immersive home theater experiences with powerful multichannel sound, high-resolution video support, advanced room correction, and flexible system configurations, plus whole-home streaming Powered by HEOS.
MPN: 301129-01-00-101
How we specify in Katy
Katy homes are mostly two story with open living areas and tall great room walls. That means tall studs to find, in-wall cable paths that clear the second floor, and audio sized for a large open room. We check wall construction and stud location before quoting a mount. For the AVR-X3900H specifically, we confirm the fit against your room in Katy, TX before quoting the install.
Service area: Katy, Fulshear, Cinco Ranch, Cross Creek Ranch, Grand Lakes, Firethorne, Brookshire, Richmond, Rosenberg.
Specifications
Technical Information
| Number of Processing Channels | 11.4 |
|---|---|
| Subwoofer Out | 4 (Independent) |
| Number of Power Amps | 9 |
| Power Output | 105 W (8 ohm, 20 Hz-20 kHz, 0.08% 2ch Drive) | 135 W (6 ohm, 1 kHz, 0.7% 2ch Drive) |
| Multi-Source / Multi-Zone | 2 |
| Front Display | 1 line FLD |
| GUI Languages | 3 (English/Francais/ Espanol) |
| System Remote Control | RC-1262 |
| Power Consumption in W | 660W |
| Power Consumption No-Sound (ECO on/off) in W | 60W / 100W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
Inputs/Outputs
| HDMI In/Out | 6/2 |
|---|---|
| Analog In/Out | 5/- |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2, 2 |
| Multi-zone Analog Preouts | 1 |
| Multichannel Pre-Out | Yes (11.4) |
| Number of Speaker Terminals | 11 |
| Speaker A/B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Zone Speaker Terminal | Assignable |
Dimensions
| Antenna:Horizontal: (W x D x H) in inches | 17.1 x 15.3 x 6.6 |
|---|---|
| Antenna:Vertical: (W x D x H) in inches | 17.1 x 15.3 x 9.3 |
| w/o Antenna: (W x D x H) in inches | 17.1 x 14.9 x 6.6 |
| Weight in lbs | 27.6 |
| Weight in lbs (Packaging) | 34.6 |
Features
- 9.4 channels
- 105 watts of power
- 3D audio
- 4K/8K HDMI
- Powered by HEOS
- Dirac Live ready
Documents
Related models
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Katy, TX, then quote the install.
